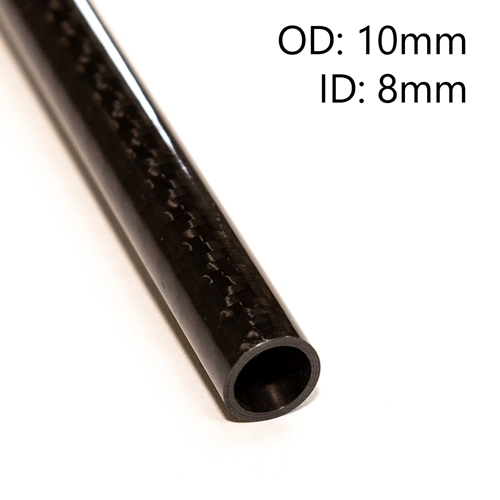

Carbon Fibre Tube 10mm - 8mm

All our carbon tubes in this section are roll wrapped using high grade carbon pre-preg, in a 2 x 2 twill weave pattern.
Pre-preg is rolled onto a mandrel and placed in an oven to cure, resulting in a tube that is stiff and light.

These tubes can be used for robotics, UAV construction, leisure applications and anywhere that requires low weight but high stiffness.

Tubes can be cut and shaped with basic hand tools, such as a fine tooth hacksaw.

All tubes will be shipped in postal tubes to prevent crushing during transit.

OD 10mm
ID  8mm

Wall Thickness 1mm

Stiffness I x E (KNM2) 0.003

Weight (KG/M) 0.04



There is a tolerance of +/- 5mm on length and +/- 0.5mm on thickness of all rods and tubes.
