Fibreglass swimming pool construction

Fibreglass Swimming Pools can be constructed in exactly the same way as we advise application for Pond construction however the materials used are different, rather than using Lloyds approved Resin, Lloyds approved flow coat and emulsion bound matting, you would use Chemical resistant Resin, Chemical resistant Flowcoat and a Powder bound matting. These materials will be more resistant to deterioration and blistering caused by chlorinated water and higher temperatures.
The Pool is constructed with a reinforced concrete base and with reinforced concrete block walls, and is rendered to provide a flat surface for the fibreglass to be laminated onto. The corners within the pool should be given a slight radius so that the fibreglass sits properly, and the surfaces should be checked to make sure that they are free from sharp points and lumps will make it much more difficult to lay the fibreglass matting onto.

When all the structural work is completed, the render is left to dry out completely, it is a good idea to use some sort of covering to put over the pond to protect the render from further water absorption if any bad weather occurs, make sure you plan your work within a dry weather spell, do not attempt to fiberglass in colder or damp climates as this will inhibit the curing process. If you are unsure please ask.

Before starting please ensure that you read all health and safety advice labels on the materials you use, protective clothing should be worn such as overalls, rubber gloves, goggles and dust masks for sanding.

Once the render is complete and dry you will be in a position to start work.

Apply a coat of G4, not only to seal the cement render but also to provide a bonding primer for the polyester resin. Its use as a sealer is to prevent any residual moisture and alkali present in the cement render from affecting the polyester resin. Polyester resins are not adhesives, and whilst they do (or do not) bond to many substrates G4 increases the adhesion due to its chemical similarity. However whilst applying G4 is by far the better system, many pools have been constructed successfully without, simply using catalysed resin thinned with styrene to seal the porosity in the render. This is purely your choice dependent upon your budget.

Once the G4 sealer has cured, within 4 hours applying (tacky to touch), layers of 450 c.s.m. can be applied, best cut one meter square pieces before you start to make the lay-up process easier to handle and don’t mix more resin than you need at once about 2 - 4 kg at a time is normally a good workable amount.
Plan your course of lay-up before starting, if you are working on a deep pool, leave a dry section to climb in and out from and finish this area last.

Lay-up outer walls first coming down 3 – 4“ onto floor space, when walls are cured finish with floor, coming back over the overlap onto, this prevents any damage to floor lay-up when moving around your pool. Leave these layers to cure.

The usual amount of catalyst added resin is 1 - 2% depending on the temperature you are working in, if you find the resin is curing too fast due to hot weather, cut down the amount of catalyst accordingly, never go less than 1% as curing will not take place effectively.

After mixing catalyst thoroughly into resin, paint a coat onto working area then place fibreglass matting over, then paint resin over, using a paddle roller, roll over area, flattening matting and eliminating any air pockets, stipple any rogue strands into place. Apply first layer over surface overlapping each layer by approximately 3 inches, then apply second layer again with 3 inches over-lap but stagger the joints away from that of the first application, best method is applying wet-on-wet, if you do leave laminate for more than 24 hours make sure you abrade and wipe with acetone to sensitize surface.

When the layers of 450g matting and resin have cured, sand down any rough or sharp protrusions and check for dry mat or gaps, once any defects are removed or repaired wipe with acetone then apply a layer of surface tissue, this gives a smooth even finish onto the course fibrous chopped strand matting and creates a good surface for applying the flowcoat.

Once the tissue and resin have cured, check for any dry patches within laminate, if you are satisfied with your work sand lightly and wipe with acetone prior to applying the flowcoat finish, again only mix a workable amount at one time (2 - 4 kg) and add 2% catalyst. Make sure you apply at recommended thickness of .4-.6mm thick, do not spread too thin, basically 1 Kg of Flowcoat should spread 1.5 sq mt.

The resins and flow coat  may seem dry at touch, but are still going through the curing process so leave for 2 weeks minimum before filling with water, as polyester resins contains around 35% styrene monomer. It is advisable to fill and empty the pool with water several times to bring out any toxins or potential spilled chemicals present.
The materials you will require are:-

397pa resin (approx. 3kg per 1kg of powder bound matting) this is supplied with 2% catalyst free as standard. You can obtain more from our solvents and additives section if you wish to add more in cooler temperatures or to speed up cure time.
450g ‘powder’ bound matting enough for 2 layers.
Surface tissue enough for 1 layer.

You will also have to make up a chemical resistant flowcoat and for this you will need to buy. 69pa gelcoat clear, enough MW wax solution to add 2% dosage and chosen pigment colour popular colour for pools is usually RAL 5012 light blue added at 150g per kg of gelcoat. Once the pigment and MW are added they should be mechanically mixed thoroughly especially as the wax will take a long time to agitate into the gelcoat. If this is not mixed properly the product will remain tacky in areas when cured.
If you are not confident with carrying out the flowcoat mixing we can do this for you however you must give the product another mix before use as the wax may separate during transit and delivery time.

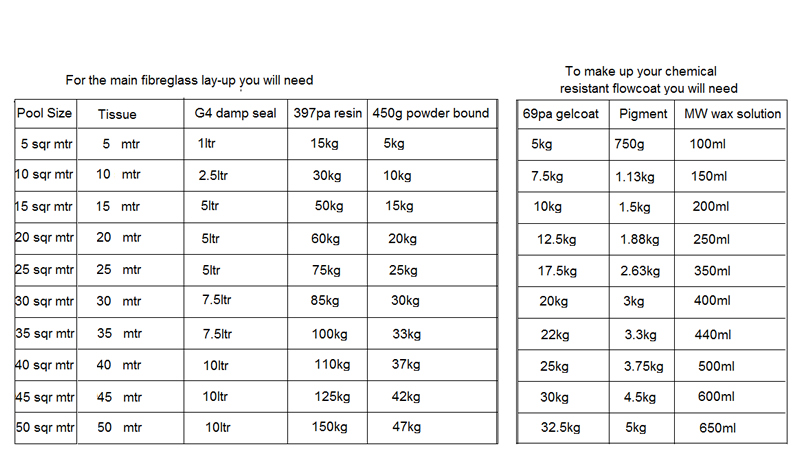

Please see below Table of recommended quantities needed on given project size, please note that the materials are estimated to allow professional users enough materials to carry out this project, anyone planning to carry out this type of project for the first time should allow for extra material to cover for wastage.

This advice and information is given in good faith for guidance only. and is given without warranty, users should determine information given and using their own judgment to determine suitability.
